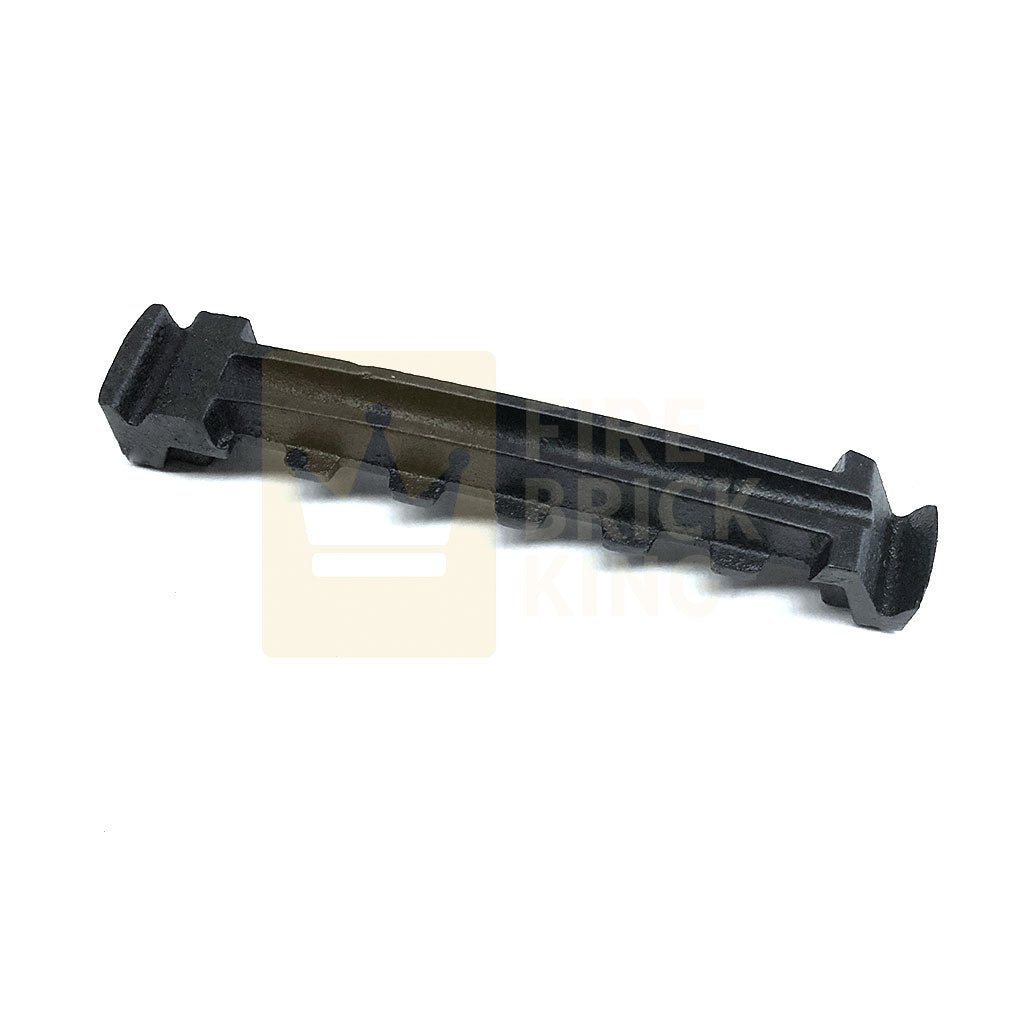

Arada Grate Bar AFS001 – Casting CST019 (x5)

This set of 5 cast iron AFS001 fire bars is designed for a wide range of compact Arada, Aarrow, Hamlet, Stratford and Villager stoves. These bars form part of the riddling grate system and play a key role in supporting the fuel bed while allowing ash to fall through. Replacing worn or mismatched bars ensures smoother riddling, better airflow, and more efficient combustion.

🔧 Specifications

• Quantity: 5 x Grate Bars
• Material: Cast Iron
• Part No: AFS001
• Length: Approx 220mm per bar
• Weight: ~0.65kg per bar
• Casting Code: CST019 / NGB1B

• Supplied as high-quality non-original compatible parts

✅ Compatibility (5 bars in a full set)

• Aarrow Acorn 4
• Aarrow Acorn 5
• Aarrow Ecoburn 5
• Aarrow Arley 5
• Aarrow Becton 5
• Aarrow Becton 7
• Aarrow Nouveau 7
• Aarrow Sherborne Compact
• Hamlet Camborne Deluxe Compact
• Hamlet Solution 4

• Stratford TF30
• Villager Heron 5
• Villager Puffin 4

📌 Other compatible models (bar quantity may vary):

ACORN4, ACORN5, APEX, ARL5M, ARL7M, ARL11M, AX1M-S2, AX2M-S2, AX1M-S3, AX2M-S3, AX3M, AX4M, AX5M-INSET, ATH1M, ATH2M, ATH3M, ATH5M-INSET, B5MU, B7MU, B11MU, B11W, BEC-5X, BEC-7X, CAMDLC, CAMDLS, CAMDLMM, CAMDLCM-G2, CAMDLSM-G2, CAMDLMM-G2, CARCM, CARSM, CARMM, EB7HE, EB7HE-G2, EB9HE, EB9HE-G2/G3/G4/G5, EB12HE, EB12HE-G2/G3/G4, EB12-CASSETTE, EB16HE, EB16HE-G2/G4/G5, EB18HE, ECB5WCE, ECB5MCE, ECB7WCE, ECB7MCE, ECB9WCE, ECB9MCE, ECB5MCE-S2, ECB5M-INSET-S2, ECB7MCE-S2, ECB9MCE-S2, ECO5, ECO7, ECO9, EV7, EV11, HARDY4M-S3, HARDY5M-S3, HSB9, HSB12, HSB16, HERON5M-S2, HERON5M-S3, N7MF, PUFFIN4M-S2, PUFFIN4M-S3, SEB20, SHBCM, SHBSM, SHBMM, SHBCM-G2, SHBSM-G2, SHBMM-G2, SIGN5W, SIGN5M, SIGN5M-S2, SIGNI5W, SIGNI5M, SF30, SF50, SM30, SM40, SM50, SOL5M, SOL5MCE, SOLI5M, SOL7M, SOL7MCE, SOL9M, SOL9MCE, SOL5SC-S2 (after serial E04), SOL5MCE-S2, SOL5MCE-WS, SOL5M-INSET-S2, SOL5W-INSET-S2, SOL7MCE-S2, SOL9MCE-S2, TF30B, TF50B, V5-DUO, VB12-DUO, VHAM, VALOR HAMLET.

🔥 Why replace your grate bars?

Worn or cracked bars lead to poor riddling and inefficient burning. Mixing old and new styles may cause uneven movement. Replacing the full set guarantees smoother operation and optimal stove performance.
