Arada Grate Bar AFS002 – Casting CST020 (x7)

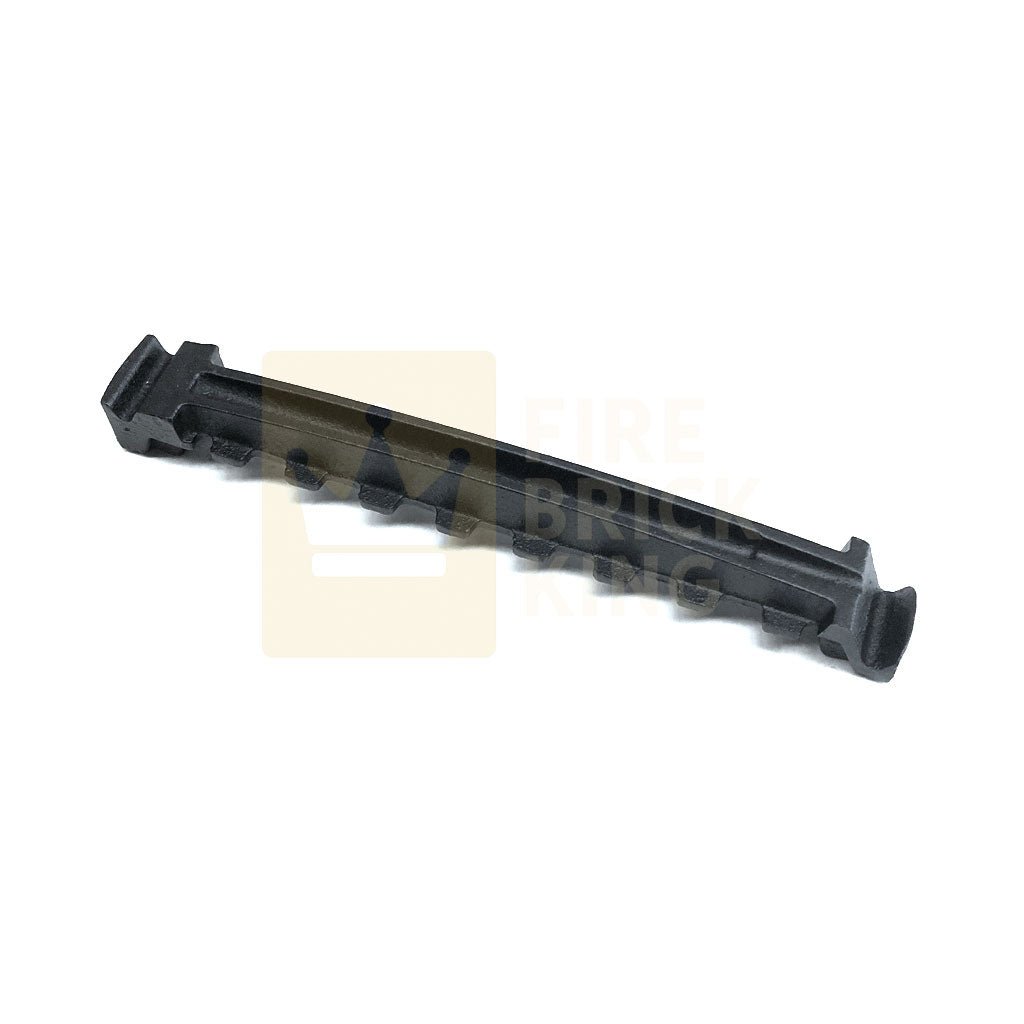

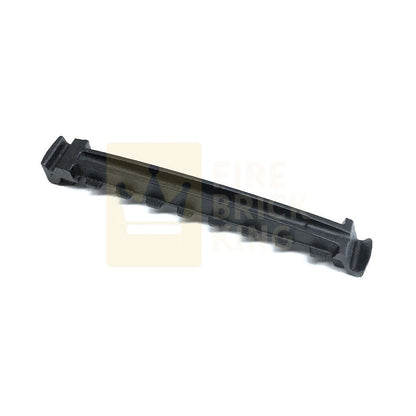

This is a set of 7 replacement AFS002 cast iron firebars designed to suit a wide range of Arada, Aarrow, Hamlet, Stratford and Villager stoves. These firebars form part of the riddling grate system, supporting your fuel bed and allowing ash to fall cleanly through. If your existing grate bars are cracked, warped, or mismatched, replacing them with this updated set ensures smoother riddling and more efficient burning.

🔧 Specifications

• Quantity: 7 x Grate Bar
• Material: Cast Iron
• Part No: AFS002
• Length: Approx. 292mm
• Weight: ~0.89kg per bar
• Casting Code: CST020 / NGB2B
• Supplied as a high-quality non-original compatible part

✅ Compatibility (7 bars in a full set)

• Villager Duo 8

📌 Also fits older or legacy models (bar count may vary):

B18MU, B18W, CAMDLLM, CAMDLLM-G2, ECO11, EV18, ECB11WCE, ECB11MCE, ECB11MCE-S2, EB20HE, EB20HE-G2, EB20HE-G4, EB20HE-G5, EB25HE, EB25HE-G2, EB25HE-G3, EB25HE-G4, EB25HE-G5, SF70, SHBLM, SHBLM-G2, SM70, SOL11MCE, SOL11MCE-S2, TF70B,VB20-DUO, V8-DUO, V12-DUO

🔥 Why replace your grate bars?

Old or warped grate bars compromise airflow and fuel efficiency. Mixing old and new styles can also lead to poor riddling. Replacing the full set ensures consistent combustion, cleaner burning, and better performance from your stove.
