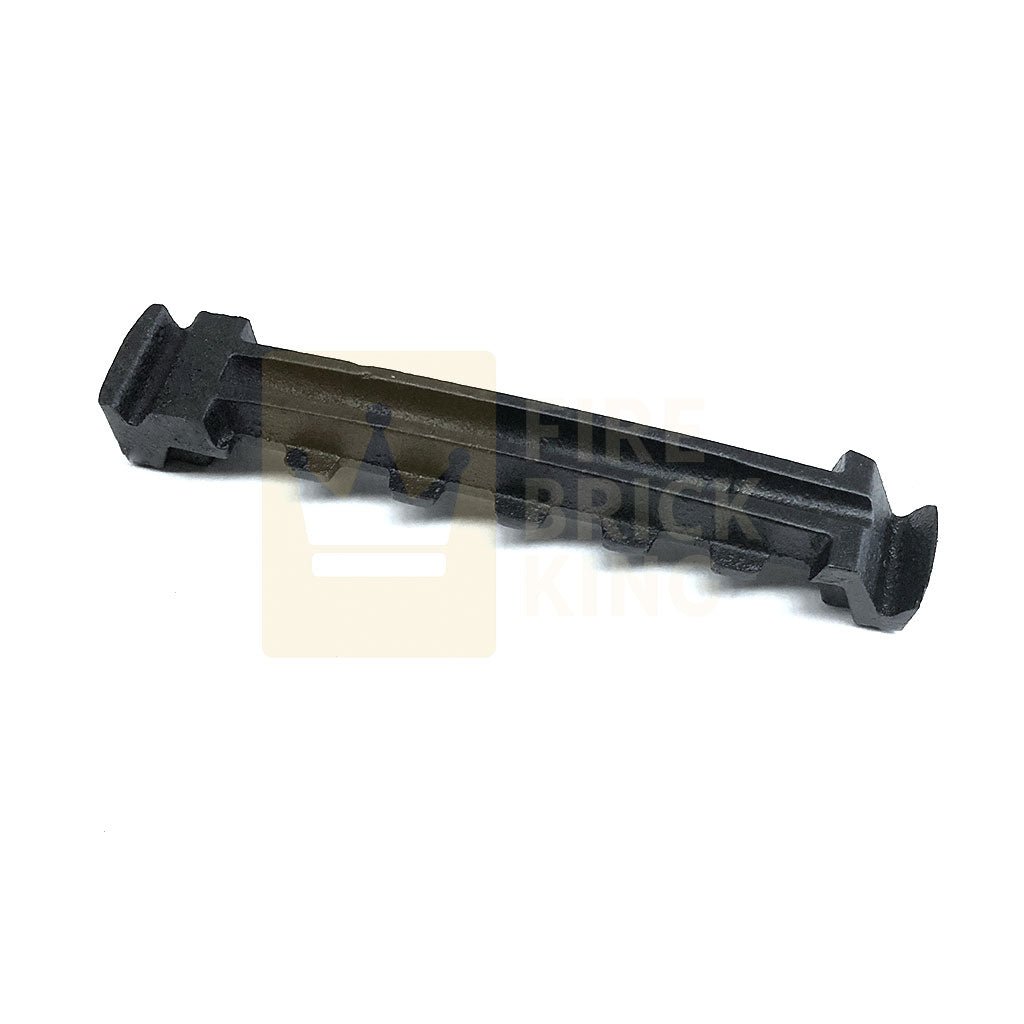

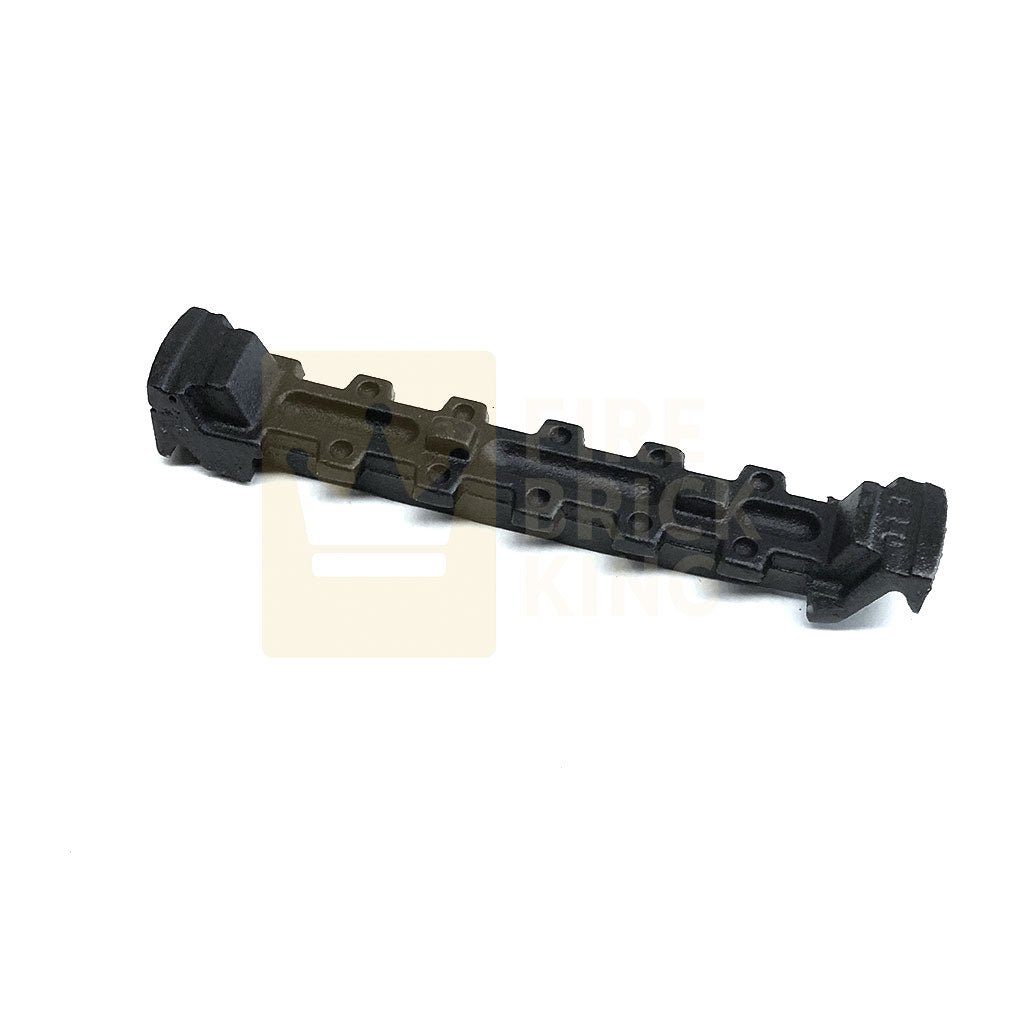

Arada Grate Bar AFS001 – Casting CST019 (x11)

This set of 10 cast iron AFS001 firebars is suitable for the Stratford Eco Boiler and a wide range of Arada, Aarrow, Hamlet and Villager stove models. These bars match Casting CST109 and are directly interchangeable with the older style bars stamped NGB1B, but for optimal performance we recommend replacing the entire set at once to ensure smooth and even riddling action.

🔧 Specifications

• Quantity: 11 x Grate Bar
• Material: Cast Iron
• Part No: AFS001
• Length: Approx. 222mm
• Weight: ~0.65kg per bar
• Casting Code: CST019 / NGB1B
• Supplied as a high-quality non-original compatible part

✅ Compatibility (11 bars in a full set)

• Aarrow Camborne Deluxe Medium
• Stratford Ecoboiler 16 HE
• Stratford Ecoboiler 18 HE
• Stratford SEB 20

📌 Other compatible models (bar quantity may vary):

ACORN4, ACORN5, APEX, ARL5M, ARL7M, ARL11M, AX1M-S2, AX2M-S2, AX1M-S3, AX2M-S3, AX3M, AX4M, AX5M-INSET, ATH1M, ATH2M, ATH3M, ATH5M-INSET, B5MU, B7MU, B11MU, B11W, BEC-5X, BEC-7X, CAMDLC, CAMDLS, CAMDLMM, CAMDLCM-G2, CAMDLSM-G2, CAMDLMM-G2, CARCM, CARSM, CARMM, EB7HE, EB7HE-G2, EB9HE, EB9HE-G2/G3/G4/G5, EB12HE, EB12HE-G2/G3/G4, EB12-CASSETTE, EB16HE, EB16HE-G2/G4/G5, EB18HE, ECB5WCE, ECB5MCE, ECB7WCE, ECB7MCE, ECB9WCE, ECB9MCE, ECB5MCE-S2, ECB5M-INSET-S2, ECB7MCE-S2, ECB9MCE-S2, ECO5, ECO7, ECO9, EV7, EV11, HARDY4M-S3, HARDY5M-S3, HSB9, HSB12, HSB16, HERON5M-S2, HERON5M-S3, N7MF, PUFFIN4M-S2, PUFFIN4M-S3, SEB20, SHBCM, SHBSM, SHBMM, SHBCM-G2, SHBSM-G2, SHBMM-G2, SIGN5W, SIGN5M, SIGN5M-S2, SIGNI5W, SIGNI5M, SF30, SF50, SM30, SM40, SM50, SOL5M, SOL5MCE, SOLI5M, SOL7M, SOL7MCE, SOL9M, SOL9MCE, SOL5SC-S2 (after serial E04), SOL5MCE-S2, SOL5MCE-WS, SOL5M-INSET-S2, SOL5W-INSET-S2, SOL7MCE-S2, SOL9MCE-S2, TF30B, TF50B, V5-DUO, VB12-DUO, VHAM, VALOR HAMLET.

🔥 Why replace your grate bars?

Worn or mismatched bars disrupt riddling and airflow, reducing heat efficiency and potentially damaging your stove base. These high-quality replacements are interchangeable with NGB1B bars—but for smooth operation, we recommend fitting a full matching set.
