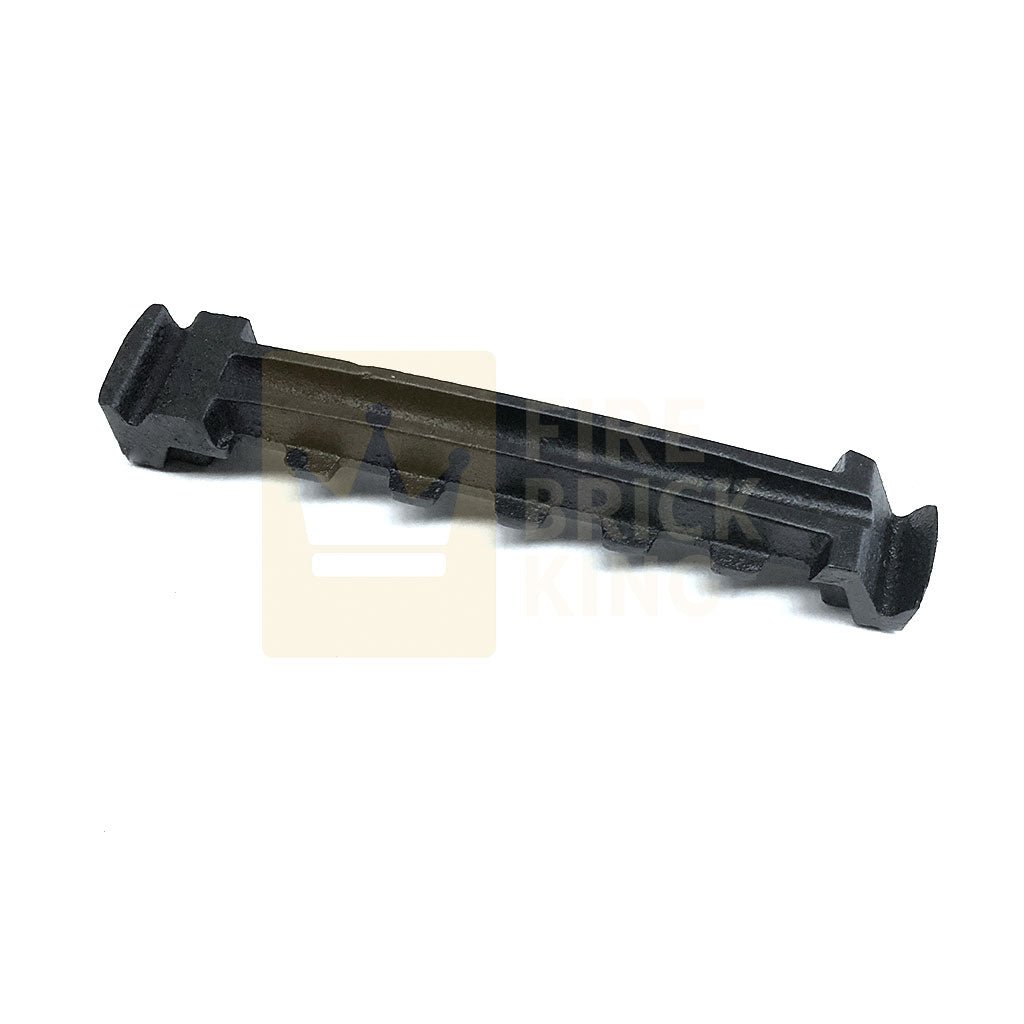

Arada Grate Bar AFS001 – Casting CST019 (x9)

This is a full set of 9 cast iron AFS001 firebars designed to suit specific Arada / Aarrow / Stratford stoves. These bars form the firebed, support the fuel load, and allow riddling for efficient burning. They are direct replacements for older-style bars stamped NGB1B, and although fully interchangeable, we recommend replacing the complete set to ensure smooth operation.

🔧 Specifications

• Quantity: 9 x Grate Bars
• Material: Cast Iron
• Part No: AFS001
• Length: Approx 220mm per bar
• Weight: ~0.65kg per bar
• Casting Code: CST019 / NGB1B

• Supplied as high-quality non-original compatible parts

✅ Compatibility (9 bars in a full set)

• Aarrow Arley 11
• Aarrow Ecoburn 9
• Aarrow Sherborne Medium
• Stratford Ecoboiler 12 HE
• Stratford SF50
• Villager Boiler 12 Duo

📌 Other compatible models (bar quantity may vary):

ACORN4, ACORN5, APEX, ARL5M, ARL7M, ARL11M, AX1M-S2, AX2M-S2, AX1M-S3, AX2M-S3, AX3M, AX4M, AX5M-INSET, ATH1M, ATH2M, ATH3M, ATH5M-INSET, B5MU, B7MU, B11MU, B11W, BEC-5X, BEC-7X, CAMDLC, CAMDLS, CAMDLMM, CAMDLCM-G2, CAMDLSM-G2, CAMDLMM-G2, CARCM, CARSM, CARMM, EB7HE, EB7HE-G2, EB9HE, EB9HE-G2/G3/G4/G5, EB12HE, EB12HE-G2/G3/G4, EB12-CASSETTE, EB16HE, EB16HE-G2/G4/G5, EB18HE, ECB5WCE, ECB5MCE, ECB7WCE, ECB7MCE, ECB9WCE, ECB9MCE, ECB5MCE-S2, ECB5M-INSET-S2, ECB7MCE-S2, ECB9MCE-S2, ECO5, ECO7, ECO9, EV7, EV11, HARDY4M-S3, HARDY5M-S3, HSB9, HSB12, HSB16, HERON5M-S2, HERON5M-S3, N7MF, PUFFIN4M-S2, PUFFIN4M-S3, SEB20, SHBCM, SHBSM, SHBMM, SHBCM-G2, SHBSM-G2, SHBMM-G2, SIGN5W, SIGN5M, SIGN5M-S2, SIGNI5W, SIGNI5M, SF30, SF50, SM30, SM40, SM50, SOL5M, SOL5MCE, SOLI5M, SOL7M, SOL7MCE, SOL9M, SOL9MCE, SOL5SC-S2 (after serial E04), SOL5MCE-S2, SOL5MCE-WS, SOL5M-INSET-S2, SOL5W-INSET-S2, SOL7MCE-S2, SOL9MCE-S2, TF30B, TF50B, V5-DUO, VB12-DUO, VHAM, VALOR HAMLET.

🔥 Why replace your grate bars?

Warped or cracked bars lead to poor riddling and inefficient burning. Mixing old and new styles may cause uneven movement. Replacing the full set guarantees smoother operation and optimal stove performance.
