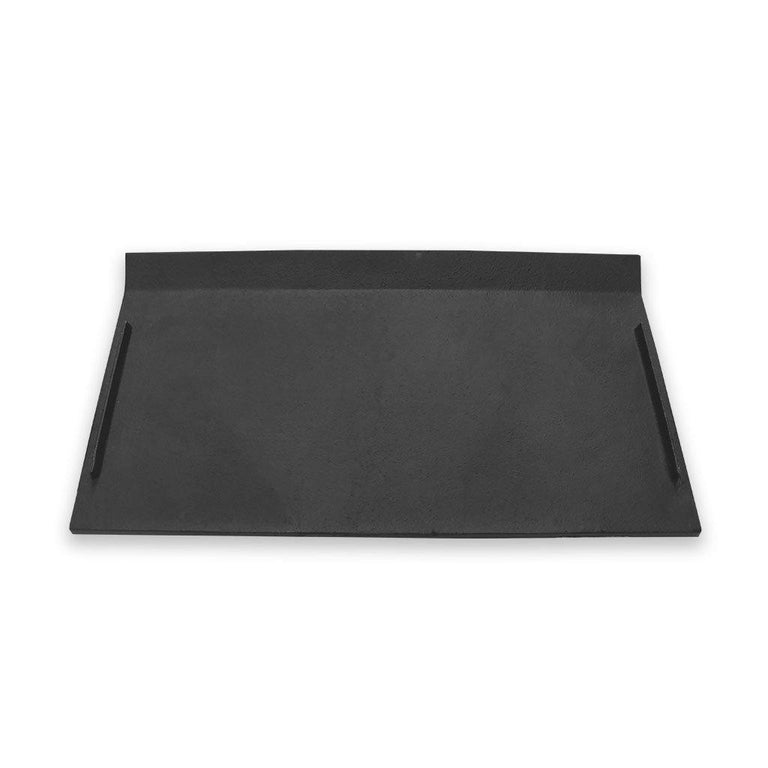

Hi-Flame Alpha 3 Baffle Plate

The baffle plate in the Hi-Flame Alpha 3 stove is a heavy cast iron throat plate that sits above the firebox, directing combustion gases across the chamber to maximise heat extraction before they exit via the flue. The Alpha 3's larger output means its baffle plate is heavier and experiences more thermal stress than smaller models, making periodic replacement important. This part is made to the original Alpha 3 specification.

✅ Compatible with: Hi-Flame Alpha 3 stove

🔧 Specifications

• Weight: 7.31 kg
• Material: Cast iron
• Heat resistance: 650°C
• Part number: HF-BP-04
• Part type: Baffle plate / throat plate

A warped or cracked baffle plate on the Alpha 3 significantly reduces the stove's ability to retain heat in the firebox, cutting efficiency and increasing flue gas temperatures. Replacing it restores correct combustion chamber geometry and returns the stove to its rated output.
