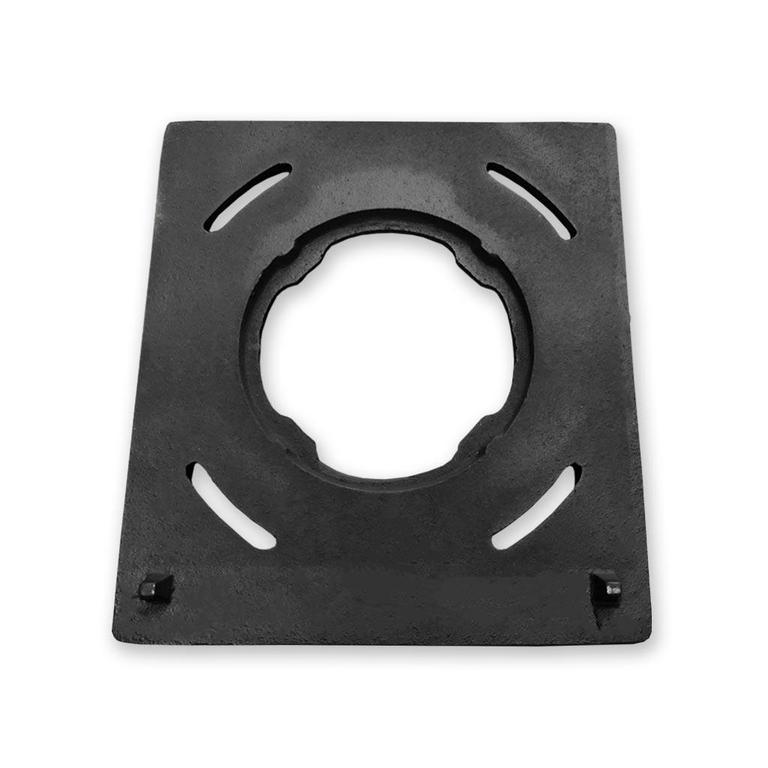

Blacksmith Artisan Boiler Grate Frame

The boiler grate frame for the Blacksmith Artisan Boiler stove forms the outer support structure for the grate assembly inside the firebox. This cast iron carrier frame holds the inner grate in the correct position to maintain airflow and ash-fall clearance. It is a heavy-duty component that may need replacing after years of high-temperature use.

✅ Compatible with: Blacksmith Artisan Inset Boiler stove

🔧 Specifications

• Material: Cast iron
• Heat resistance: Up to 650°C
• Weight: 7.18 kg
• Part number: HF-GF-11
• Part type: Boiler grate frame / carrier frame

The grate frame supports the entire fuel bed and directs ash into the ash pan below. A warped frame reduces the gap between grate bars, restricting primary air and leading to sluggish, smoky burns. Replacing the frame requires removing all inner components first; a straightforward task with the stove cold and cleaned out.
