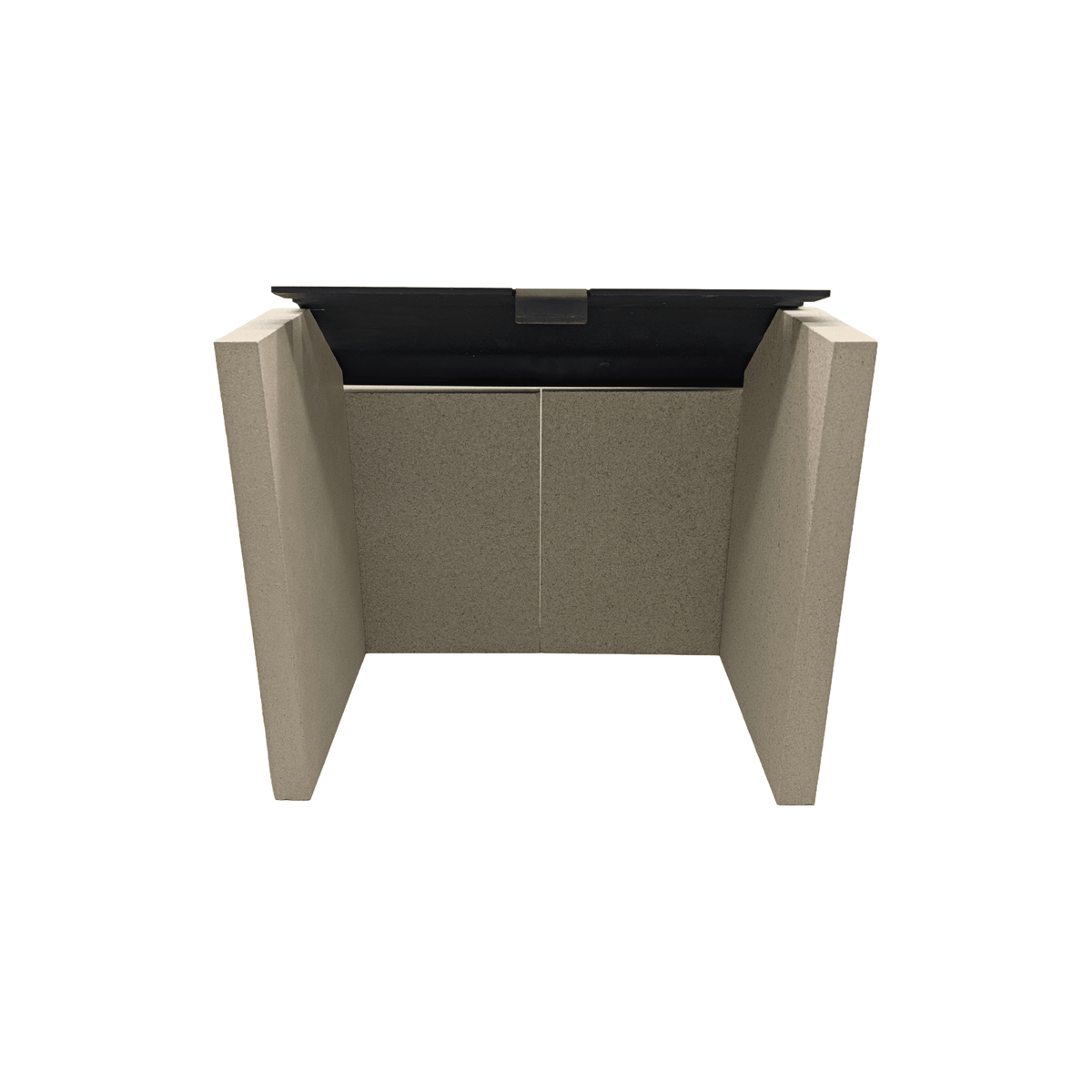

Charnwood Country 8 Baffle & Fire Brick Set

Renew the firebox lining and upper throat plate in your Charnwood Country 8 with this baffle and fire brick set. It combines four High Density Vermiculite bricks, heat resistant to 1,200°C, with a replacement steel baffle. The set is for the square-edged MK2 wood-burning brick layout described below.

✅ Compatibility

• Charnwood Country 8 MK2 wood-burning, dry/non-boiler models
• Matching versions manufactured from 2002 to December 2021 using fire brick set 011/LV28S and throat plate 010/LV31
• Square-edged bricks where the side and rear pieces meet
• Not suitable for earlier MK1 bricks with 45° angled joints, Country 8B boiler stoves or multifuel versions using different internal parts
• Check your existing brick layout and manufacturer references before ordering

📦 Kit contents

• 2 side fire bricks
• 2 rear fire bricks
• 1 steel baffle plate

🔧 Specifications

• Fire brick material: High Density Vermiculite
• Vermiculite heat resistant to 1,200°C
• Side bricks: approximately 350mm × 250mm × 30mm each
• Rear bricks: approximately 266mm × 266mm × 30mm each
• Baffle material: Steel
• Baffle weight: approximately 3.9kg
• Replacement fire brick set reference: Charnwood 011/LV28S
• Replacement baffle reference: Charnwood 010/LV31
• Supplied as non-original compatible replacement parts

🔥 Why replace your fire bricks and baffle?

The bricks insulate the firebox, while the baffle directs hot gases towards the flue along the intended route. Badly eroded bricks and a warped or damaged baffle can no longer sit and work as intended.

Check the square-edged brick layout in your Country 8 and renew the lining and baffle together with this five-piece set.
