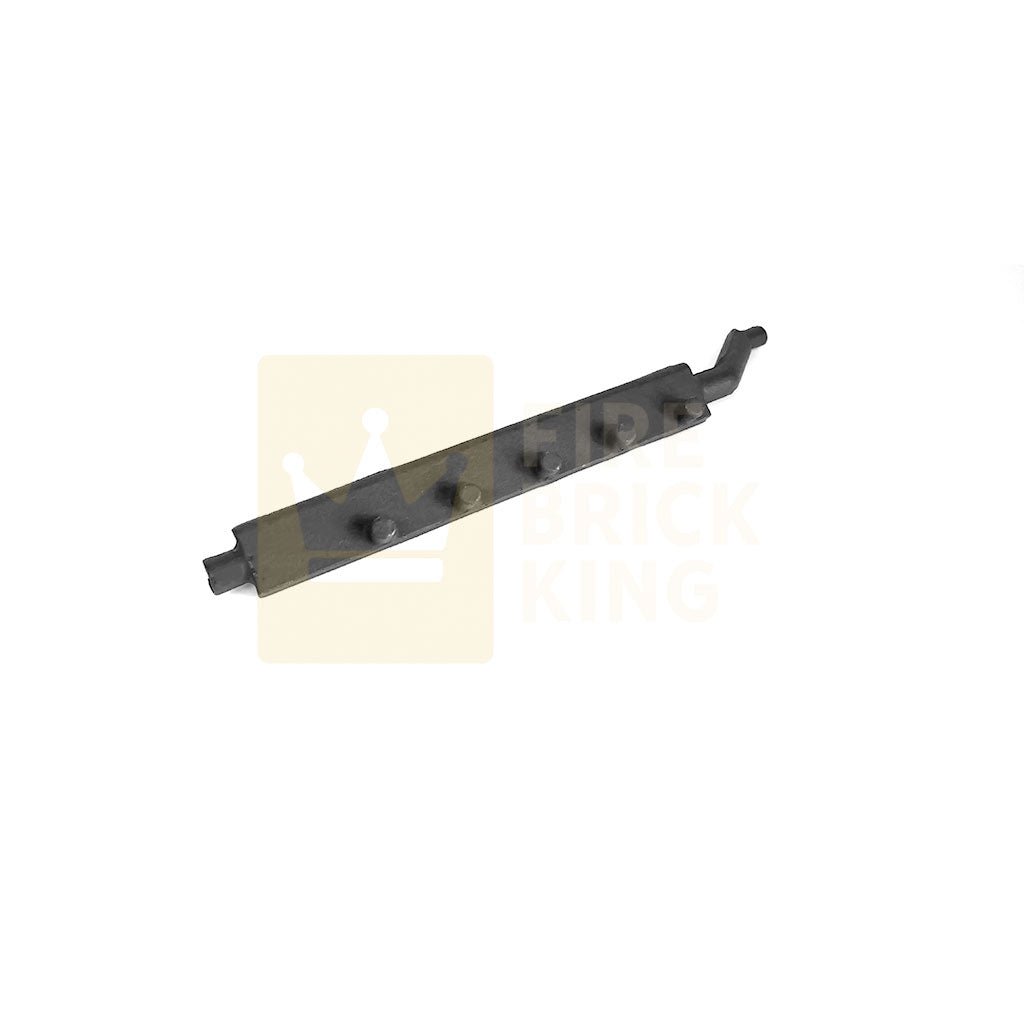

Charnwood Replacement Grate Bar 002/CG01

A single cast iron replacement grate bar designed for a wide range of Charnwood stoves. These firebars are central to the stove’s riddling mechanism, supporting solid fuel while allowing ash to fall into the ashpan for clean combustion.

✅ Compatibility

Fits the following Charnwood stoves:

• Country 12 MF MKI / MKII (14 in a full set)
• Country 14B (14 in a full set)
• Country 15B (14 in a full set)
• Country 16B MF / WB | MKI & MKII (14 in a full set)
• Cove 1 MKI / MKII (5 in a full set)
• Cove 1 SR (5 in a full set)
• Bay 5GT (5 in a full set)
• LA45iB / 50iB (11 in a full set)
• DX45iB / 50iB (11 in a full set)
• CW40 / 40B (11 in a full set)
• CW45iB / 50iB (11 in a full set)
• CW50 / 50B (11 in a full set)
• Country 8 MF MKI / MKII (11 in a full set)
• SLX20 (7 in a full set)
• LA20i (7 in a full set)
• LA30i (7 in a full set)
• DX20i MKI / MKII (7 in a full set)
• CW20i (7 in a full set)
• SLX45 MKI / MKII (10 in a full set)

🔧 Specifications

• Material: Cast Iron
• Quantity: 1 x Grate Bar
• Approx Length: 300mm
• Weight: ~1.3kg
• Part Code: 002/CG01
• Supplied as a non-original compatible part

🔥 Why replace your firebars?

Worn or cracked firebars reduce efficiency, airflow, and can lead to inconsistent riddling. Replacing them ensures smooth fuel handling and protects your stove’s internal components. If your current set includes older bars, we recommend replacing the entire set to maintain even wear and optimal performance.
