Clearview Vision 500 Baffle & Brick Set

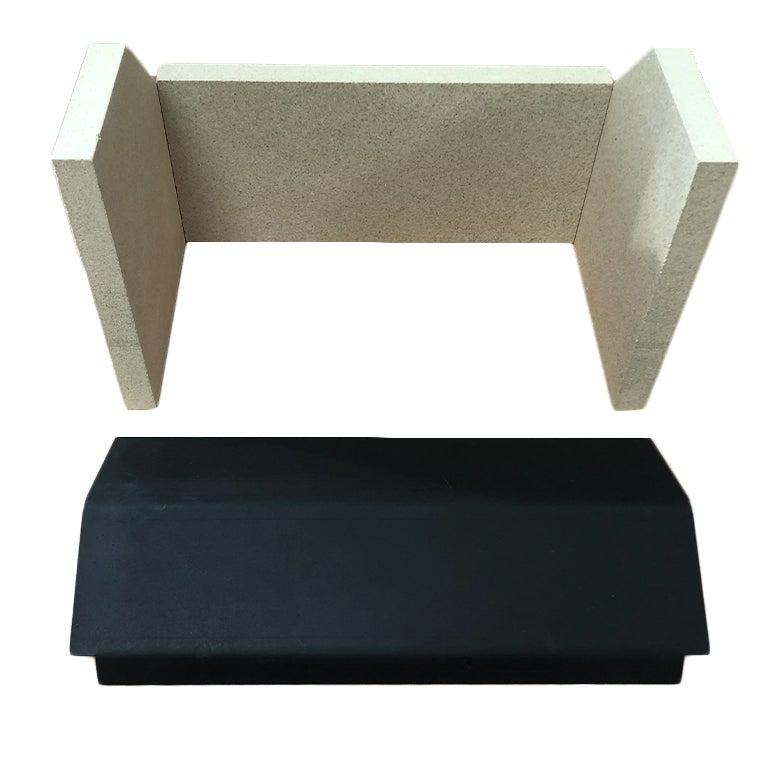

Keep your Clearview Vision 500 stove operating at peak performance with this complete replacement baffle and brick set. Designed for reliability and heat efficiency, this set includes a 5mm thick steel baffle plate and high-density vermiculite firebricks that provide superior insulation and longevity compared to standard refractory materials.

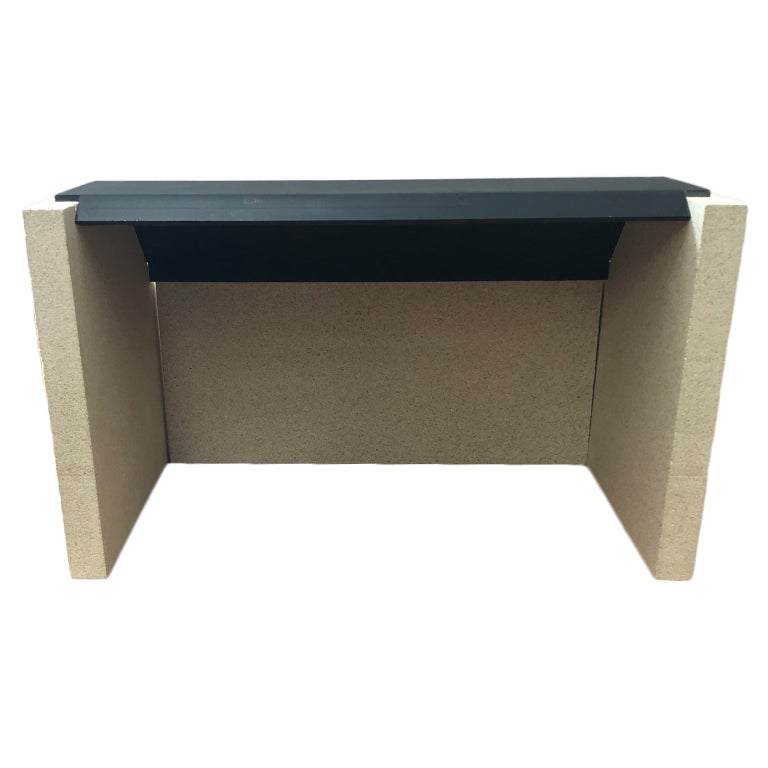

The baffle—also referred to as a throat plate or deflector—sits above the fire and helps to retain heat while ensuring flue gases are re-burned for cleaner combustion. Damaged or warped baffles and bricks can lead to heat loss and reduced stove efficiency, making timely replacement essential.

✅ Compatibility

• Clearview Vision 500

🔧 Specifications

• Baffle Plate Width: Approx. 490mm
• Rear Brick: Approx. 442mm x 210mm x 30mm
• Side Bricks: Approx. 297mm x 261mm x 30mm
• Baffle Material: 5mm Steel
• Brick Material: High-Density Vermiculite
• Supplied as a non-original compatible part

🔥 Why replace your baffle and bricks?

Replacing your stove’s internal components when worn or damaged helps maintain safe combustion, prevents long-term damage to your appliance, and improves heat output—making this set a smart, cost-effective upgrade for your Clearview Vision 500.
