Clear, steady burn control starts with a proper door seal. This Clearview Vision 500 Door Rope Kit renews the airtight gasket around the stove door, helping you maintain predictable burn rates, easier lighting, and cleaner stove glass. The soft-weave, heat-resistant fibreglass rope sits neatly in the rope channel to block unwanted air leaks, while the high-temperature adhesive bonds it securely for a long-lasting fit. A short length of sealing tape is included to cap the rope ends neatly and reduce fraying during installation. If your Vision 500 is burning too fast even with the air controls reduced, the flames look erratic, or you’re seeing smoke staining around the door edge, the door rope seal is due for replacement.
✅ Compatible with: Clearview Vision 500 (door seal

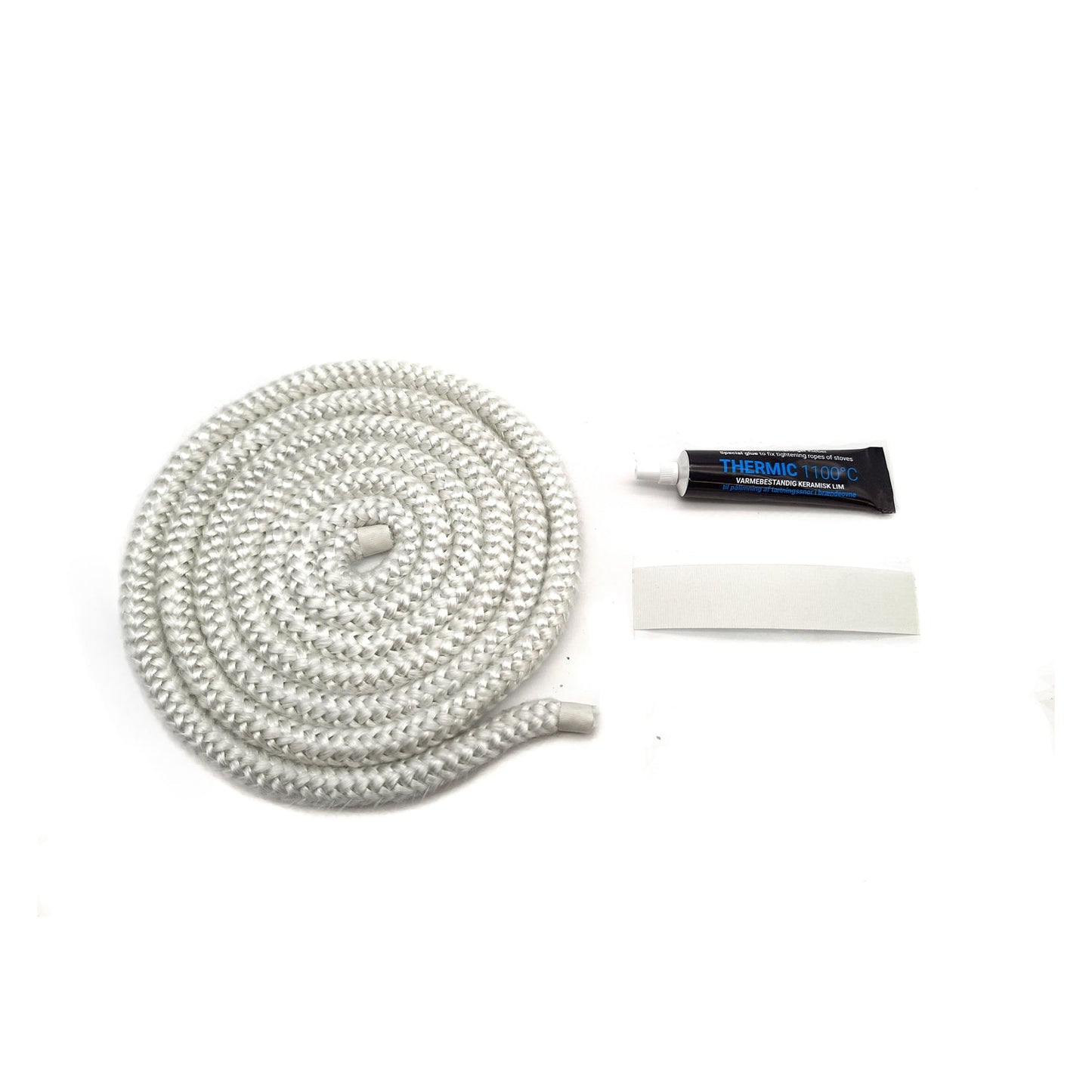

- Heat-resistant fibreglass door rope (cut-to-fit length for one door
- High-temperature rope adhesive (for secure, long-lasting bond
- Sealing tape to finish rope ends and stop fraying
Why replace the rope seal?
- Restores an airtight door closure for accurate combustion control
- Helps prevent over-firing caused by uncontrolled air leaks
- Reduces smoke spillage and improves the flame view through the glass
- Supports efficiency and protects internal components from excess heat
Fitting notes (quick guide)
Remove the old rope and scrape out any remaining cement/adhesive. Vacuum the channel clean.
Dry-lay the new rope around the channel without stretching it; mark and cut to length.
Tape the rope ends to prevent fraying, then apply a thin, even bead of adhesive in the channel.
Press the rope in firmly all the way round, join the ends neatly, and close the door for a couple of hours to set.
Do a paper-strip test: close the door on a slip of paper—mild resistance all around means a good seal (adjust latch tension if needed).
🔧 Specifications
- Material: Soft-weave, heat-resistant fibreglass rope
- Temperature rating: up to 550°C (rope)
- Part type: Door rope seal kit with adhesive and end-seal tape
- Fitment: Correct size for the Clearview Vision 500 door rope channel (do not stretch during install)
Maintenance tips
Check the door seal at least once a year (or sooner with daily use). Replace the rope if it’s flattened, shiny/hard, split, or fraying, or if the door fails the paper-strip test. This kit is for the door rope seal only; any glass edge seal (if fitted on your model) is a separate part. A correctly fitted rope and proper high-temp adhesive keeps your Clearview Vision 500 controllable, efficient, and safe throughout the heating season.
