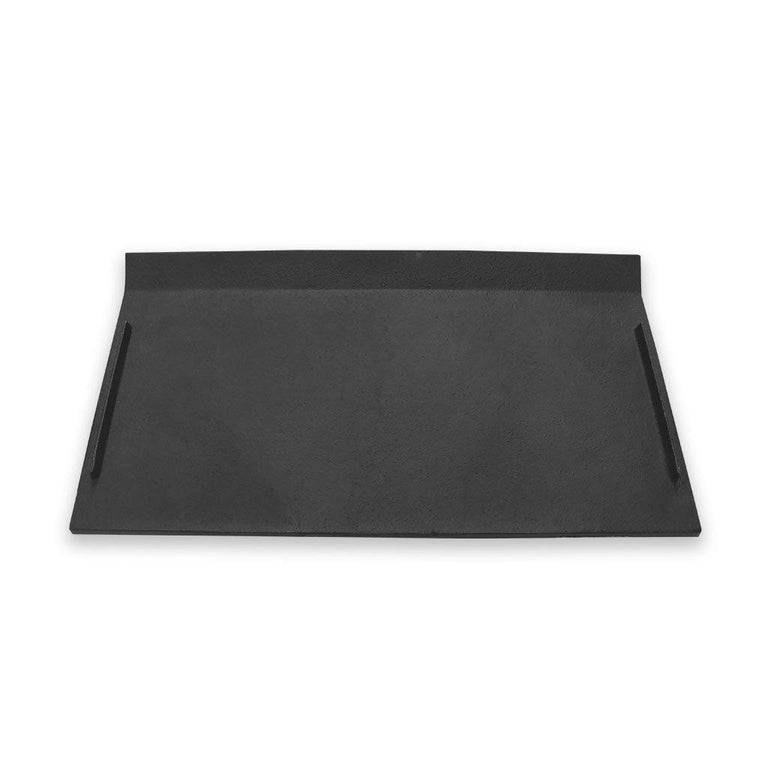

Hi-Flame Graphite 10 Baffle Plate

The baffle plate on the Hi-Flame Graphite 10 sits above the fire chamber and deflects combustion gases back down before they exit through the flue. This secondary pass increases heat extraction and reduces emissions. The plate takes sustained direct heat and will eventually crack or burn through, requiring replacement to restore stove efficiency.

✅ Compatible with: Hi-Flame Graphite 10 Non-Boiler (GR910)

🔧 Specifications

• Weight: 7.31 kg
• Material: Cast iron
• Heat resistance: up to 650°C
• Part number: HF-BP-04
• Part type: Baffle plate

Also referred to as a throat plate, the baffle is critical to secondary combustion. Without it, heat exits straight up the flue rather than being recirculated through the chamber. To remove the old plate, lift the fire fence, tilt the baffle and slide it out from the front of the firebox.
