Hunter Herald 7 Inset Grate Bar Set (x9)

A complete set of cast iron firebars designed specifically for the Hunter Herald 7 Inset stove. These bars form the riddling grate system, supporting the fuel bed and allowing ash to drop cleanly into the ashpan—vital for maintaining a safe and efficient burn.

This set includes 5 Lower Bars and 4 Upper Bars, engineered to replicate the original specification for a perfect fit.

✅ Compatibility

• Hunter Herald 7 Inset

🔧 Specifications

• Total: 9 Grate Bars
  • 5 x Lower Grate Bars – Approx. 268mm
  • 4 x Upper Grate Bars – Approx. 253mm
• Material: Cast Iron
• Total Weight: ~12kg
• Supplied as non-original high-quality compatible parts

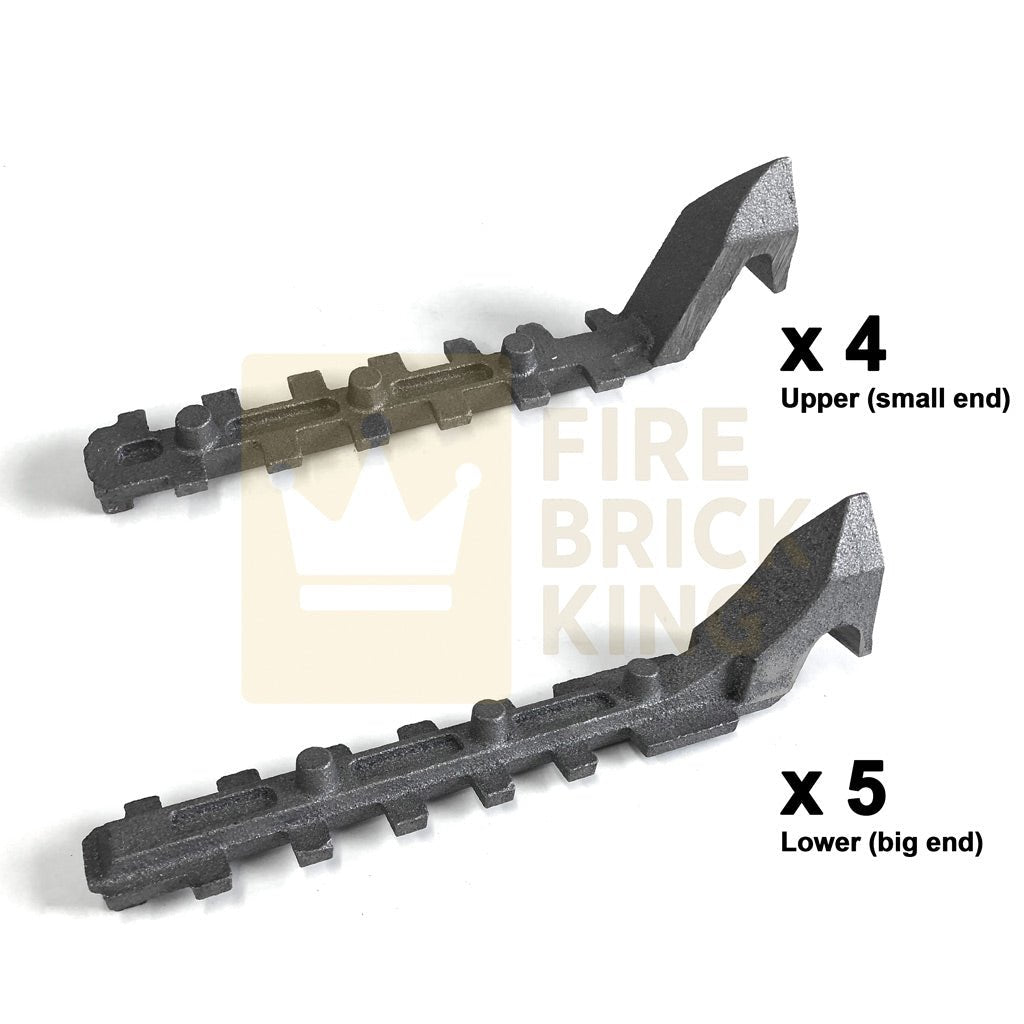

The Lower (Big End) bars feature a larger hook and sit lower on the shaker bar.
The Upper (Small End) bars have a smaller hook and sit higher on the shaker bar.

❗The grate bar design for this stove was updated in early 2007. If your unit is a MK1 and still uses the original bars, you’ll need to replace the entire set initially, as the previous style is not compatible with the newer version.

🔥 Why replace your grate bars?

Cracked, warped, or mismatched firebars hinder riddling and airflow, reducing stove efficiency. Replacing the full set restores clean burning and helps protect internal components from damage.
