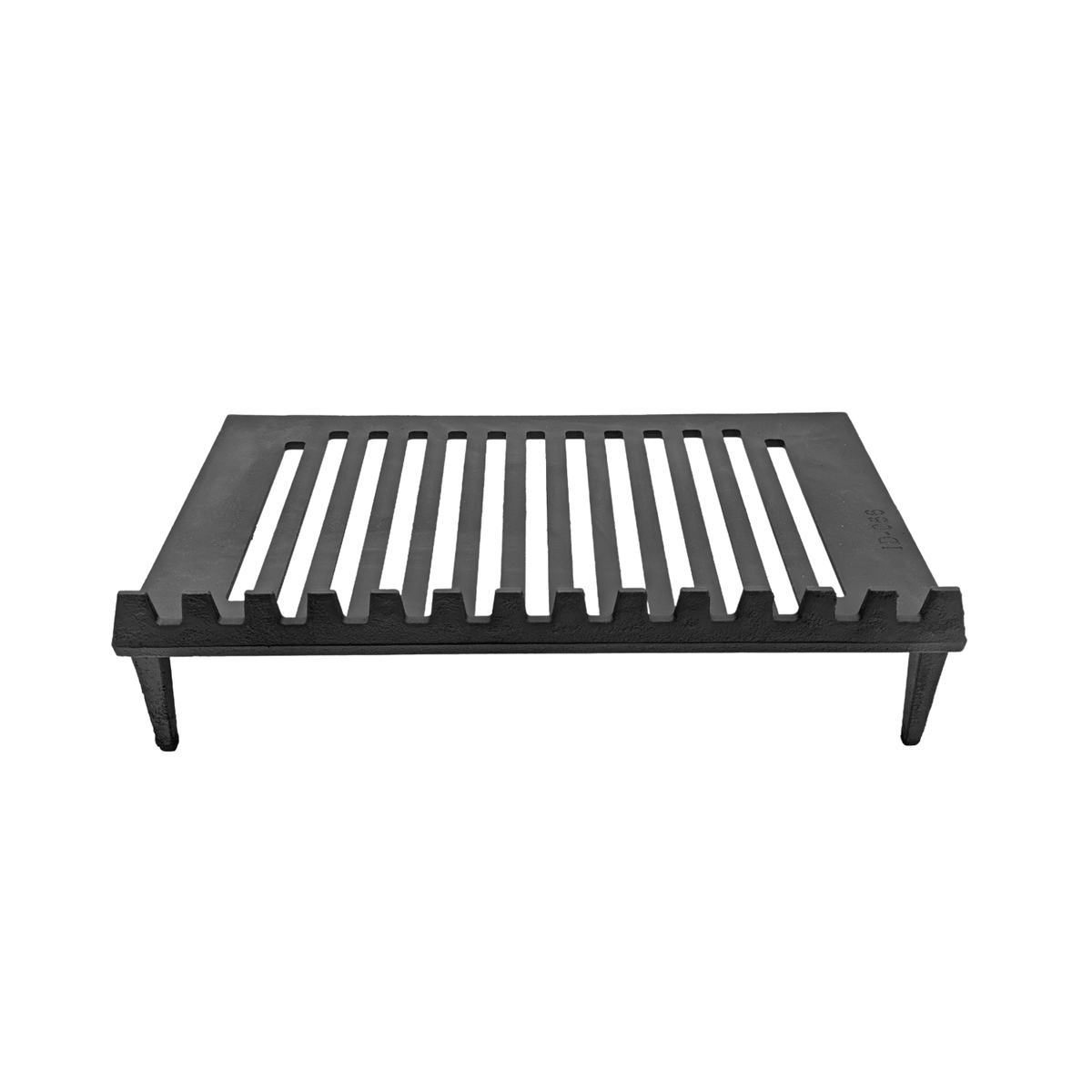

Sunrain JA006 Grate

Replace a worn firebox grate with this Sunrain JA006 Grate, made from high-quality cast iron. At 6.91kg, this is a substantial replacement for the fuel-supporting grate inside the firebox. It is a non-original part designed to fit the JA006 and the compatible stoves listed below.

The grate holds the fuel above the ash pan and allows air to circulate underneath the fire. It is one of the higher-wear parts in the firebox. Replacing a worn grate helps restore airflow beneath the fuel and gives it the support it needs during use. Check the model name as well as the shape of your existing grate when choosing a replacement.

✅ Compatibility

• JA006 / Sunrain JA006
• VO006
• Winterwarm
• TST006
• Foxhunter
• Suitable for replacing the firebox grate on the compatible models listed above
• Please compare your existing grate with the part specified for your stove before ordering

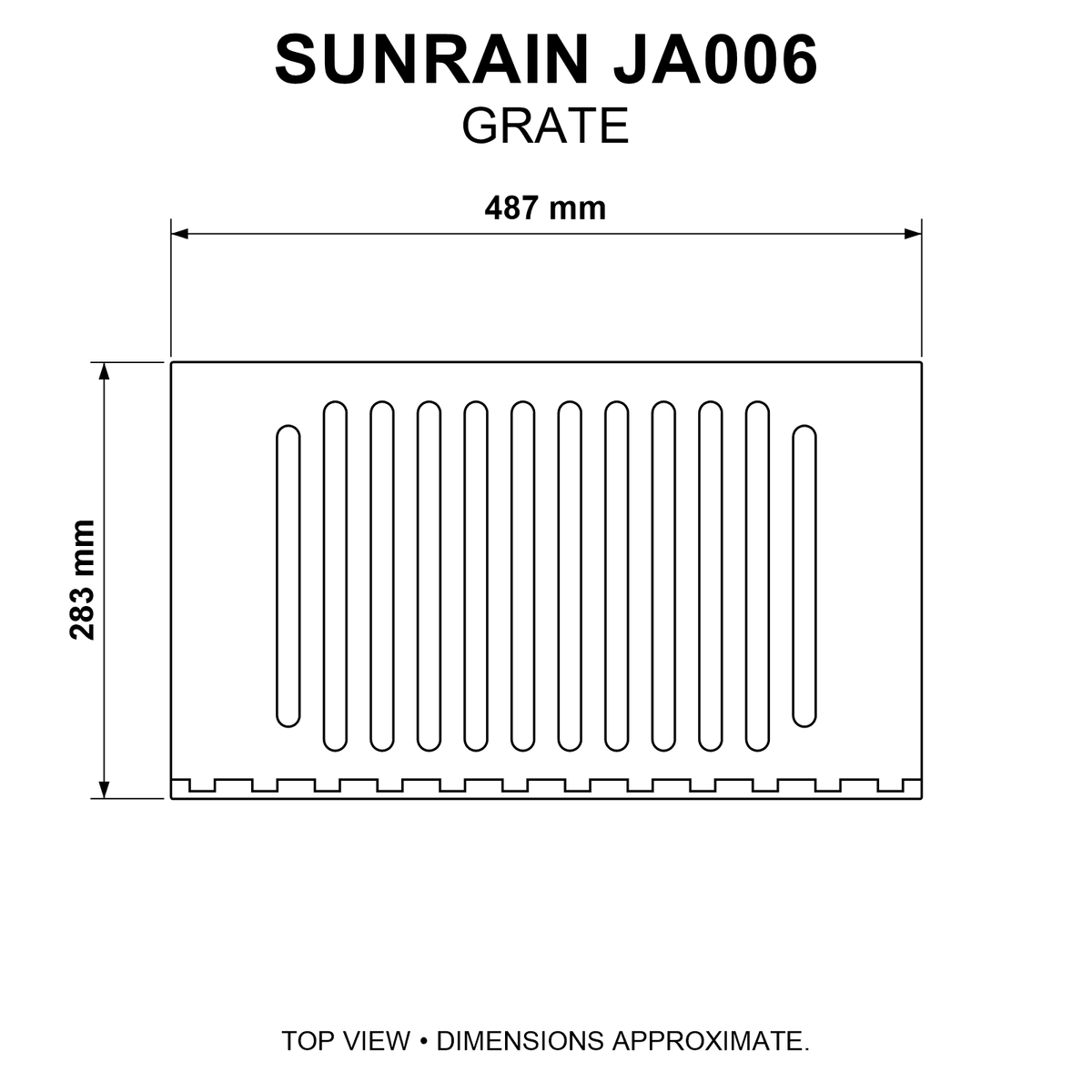

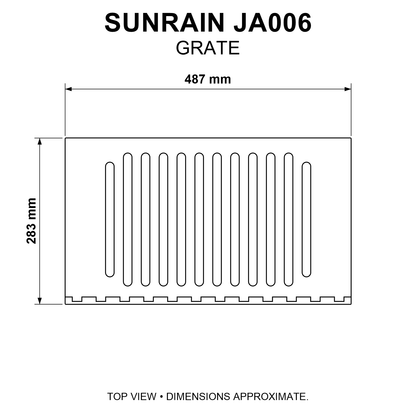

📏 Dimensions (approx.)

• Width: approximately 487mm
• Depth: approximately 283mm
• Height to top of front fence: approximately 140mm
• Height to grate bed: approximately 110mm

Allow for small casting variations. Compare these measurements and the shape of your existing part with your stove before ordering.

🔧 Specifications

• Part type: High quality non-original replacement
• Material: High-quality cast iron
• Weight: 6.91kg

This JA006 replacement grate is a high-quality cast iron option for renewing the fuel-supporting part at the base of the firebox. The Sunrain JA006 baffle plate, which sits above the fire, is listed separately if that part also needs replacing.
