Sunrain JA010 Baffle Plate

Replace a cracked or corroded throat plate with this Sunrain JA010 Baffle Plate, made from high-quality cast iron. This 3.5kg non-original replacement is designed to fit the JA010 and the compatible stoves listed below, giving you a well-made replacement for the plate above the fire.

The baffle sits across the top of the firebox, where it slows the passage of flue gases and helps retain heat inside the stove. It is also known as a throat plate. Exposure to intense heat can cause the plate to crack or corrode over time. Checking its condition during stove maintenance helps you identify when the existing plate needs replacing.

✅ Compatibility

• JA010 / Sunrain JA010
• VO010
• Woodsman
• Mazona Olympus
• Please check your stove model and compare the shape of your existing baffle before ordering
• Use this baffle's compatibility list when choosing the part, as the JA010 grate has a different list

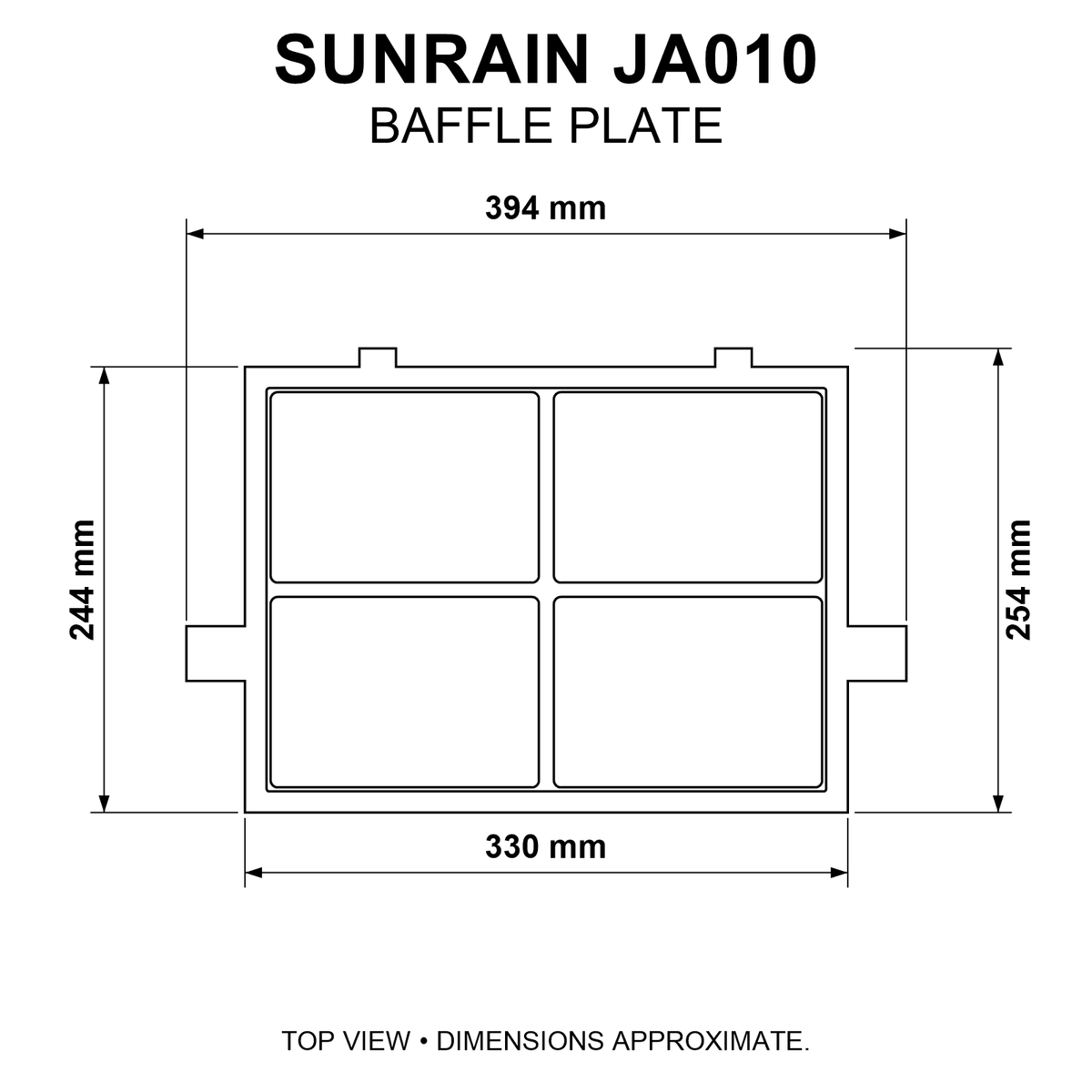

📏 Dimensions (approx.)

• Width including mounting ears: approximately 394mm
• Width excluding mounting ears: approximately 330mm
• Depth including tab: approximately 254mm
• Depth excluding tab: approximately 244mm

Allow for small casting variations. Compare these measurements and the shape of your existing part with your stove before ordering.

🔧 Specifications

• Part type: High quality non-original replacement
• Material: High-quality cast iron
• Weight: 3.5kg

Choose this JA010 cast iron baffle when you want a high-quality replacement for the plate above the fire. For repairs to the fuel-supporting part at the base of the firebox, see the separate Sunrain JA010 grate listing and check its compatibility details.
