Sunrain JA010 Grate

Replace a cracked or warped firebox grate with this Sunrain JA010 Grate, made from high-quality cast iron. This solid 4.0kg non-original replacement supports fuel at the base of the firebox and is designed to fit the JA010 and the compatible stoves listed below.

The grate holds fuel above the ash pan, allowing air to reach the fire from underneath. Repeated heating and cooling can cause the bars to crack or warp over time. Replacing a damaged grate helps restore the support beneath the fuel and the airflow needed for combustion. Check the stove model and the shape of the existing grate before choosing your replacement.

✅ Compatibility

• JA010 / Sunrain JA010
• VO010
• TST010
• Woodsman
• Coseyfire
• Mazona Olympus
• Please check your stove model and compare your existing grate before ordering

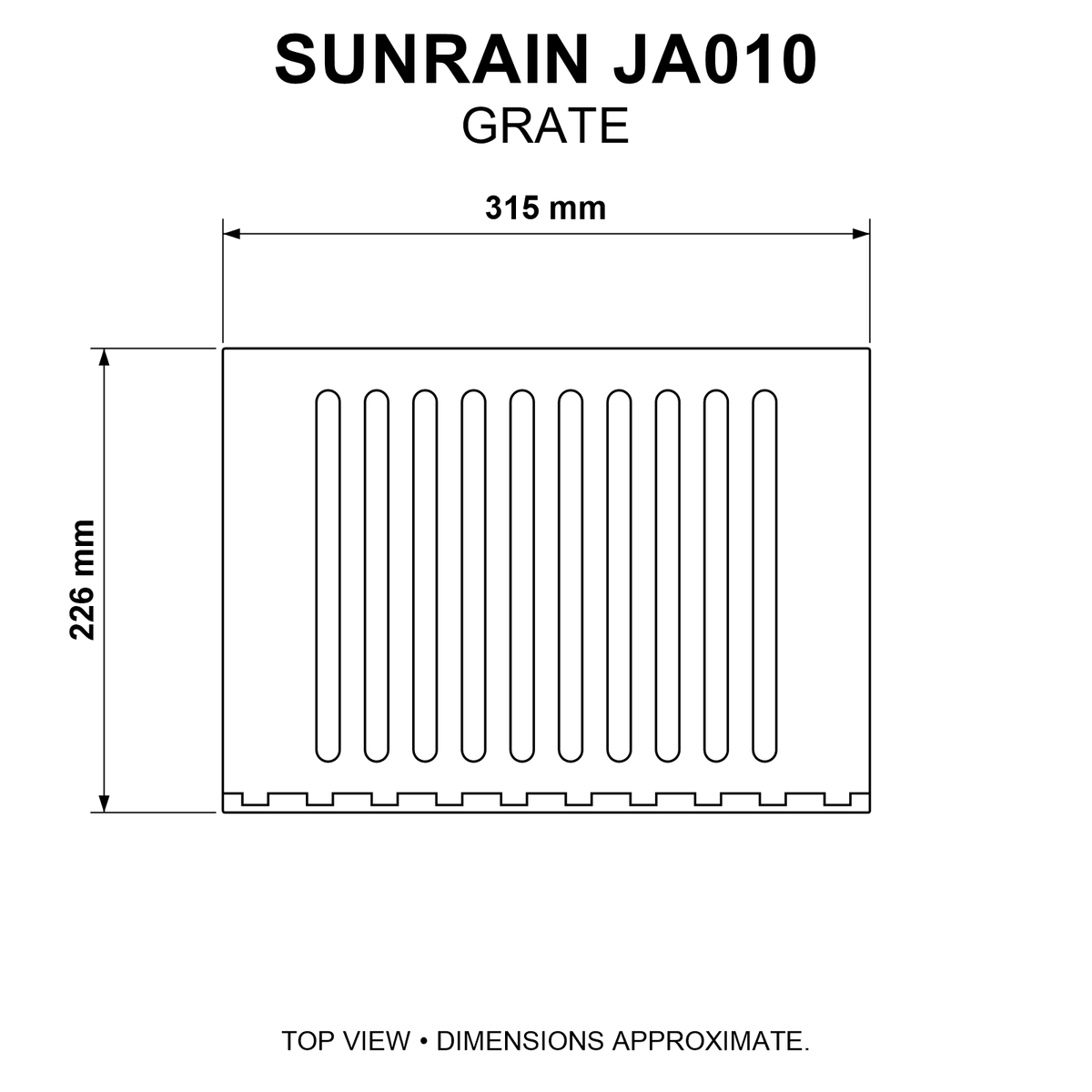

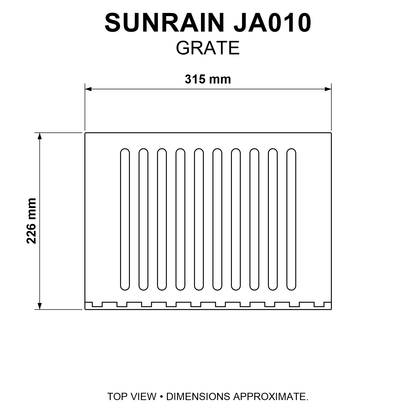

📏 Dimensions (approx.)

• Width: approximately 315mm
• Depth: approximately 226mm
• Height to top of front fence: approximately 140mm
• Height to grate bed: approximately 102mm

Allow for small casting variations. Compare these measurements and the shape of your existing part with your stove before ordering.

🔧 Specifications

• Part type: High quality non-original replacement
• Material: High-quality cast iron
• Weight: 4.0kg

This JA010 replacement grate gives you a high-quality cast iron part for the base of the firebox. The Sunrain JA010 baffle plate is listed separately for repairs above the fire. Its compatibility list differs from the grate's, so check the relevant listing for each part you need.
